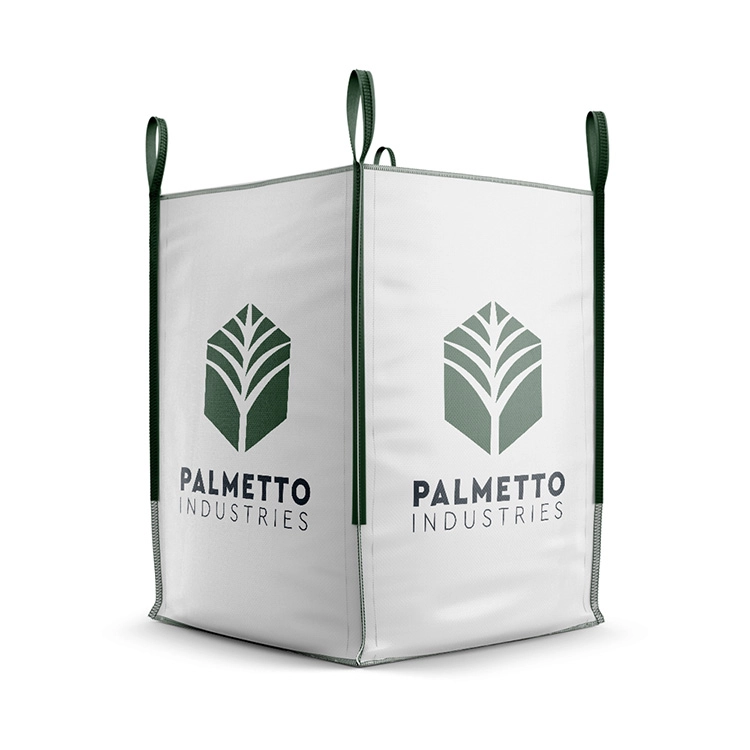

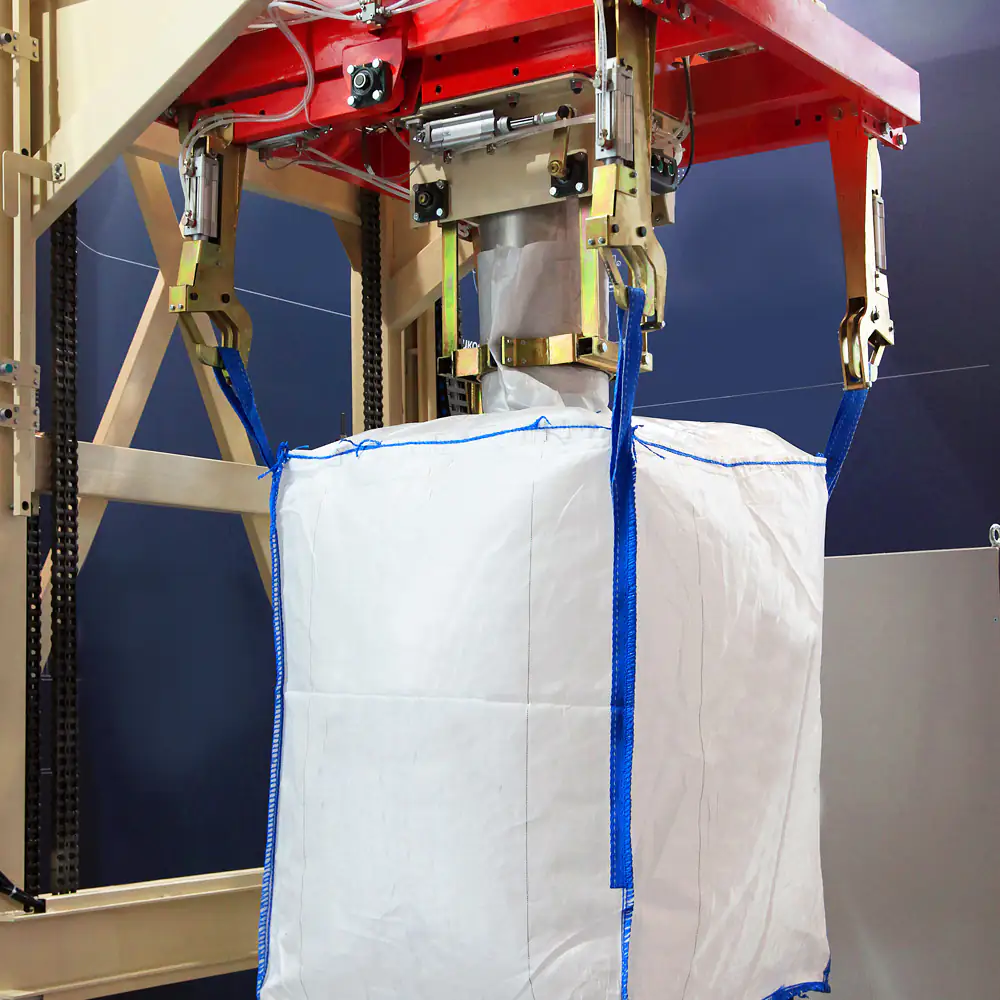

Type B FIBC Bulk Bags

Specifications
(Contact us below for custom specs.)

Material100% Virgin Polypropylene

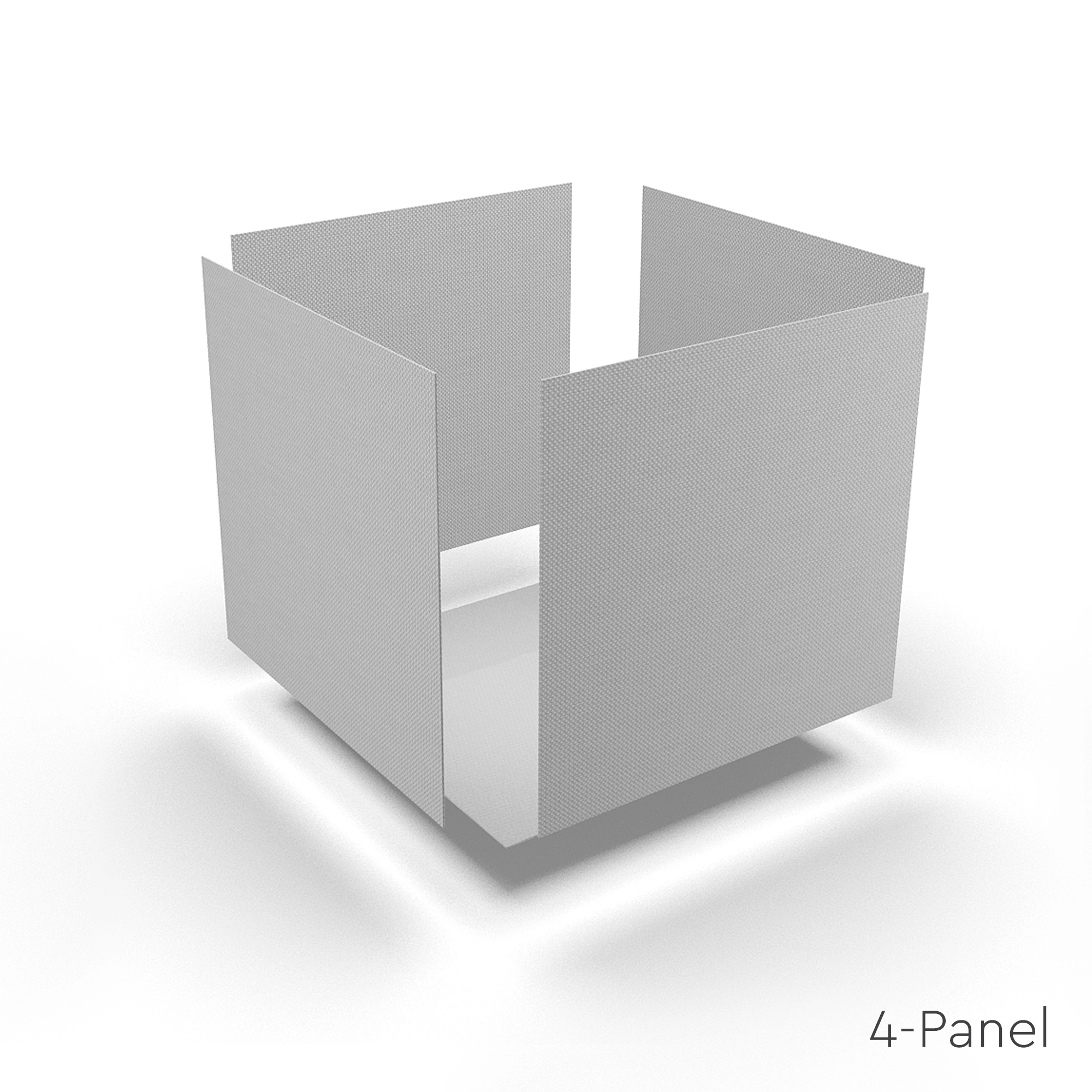

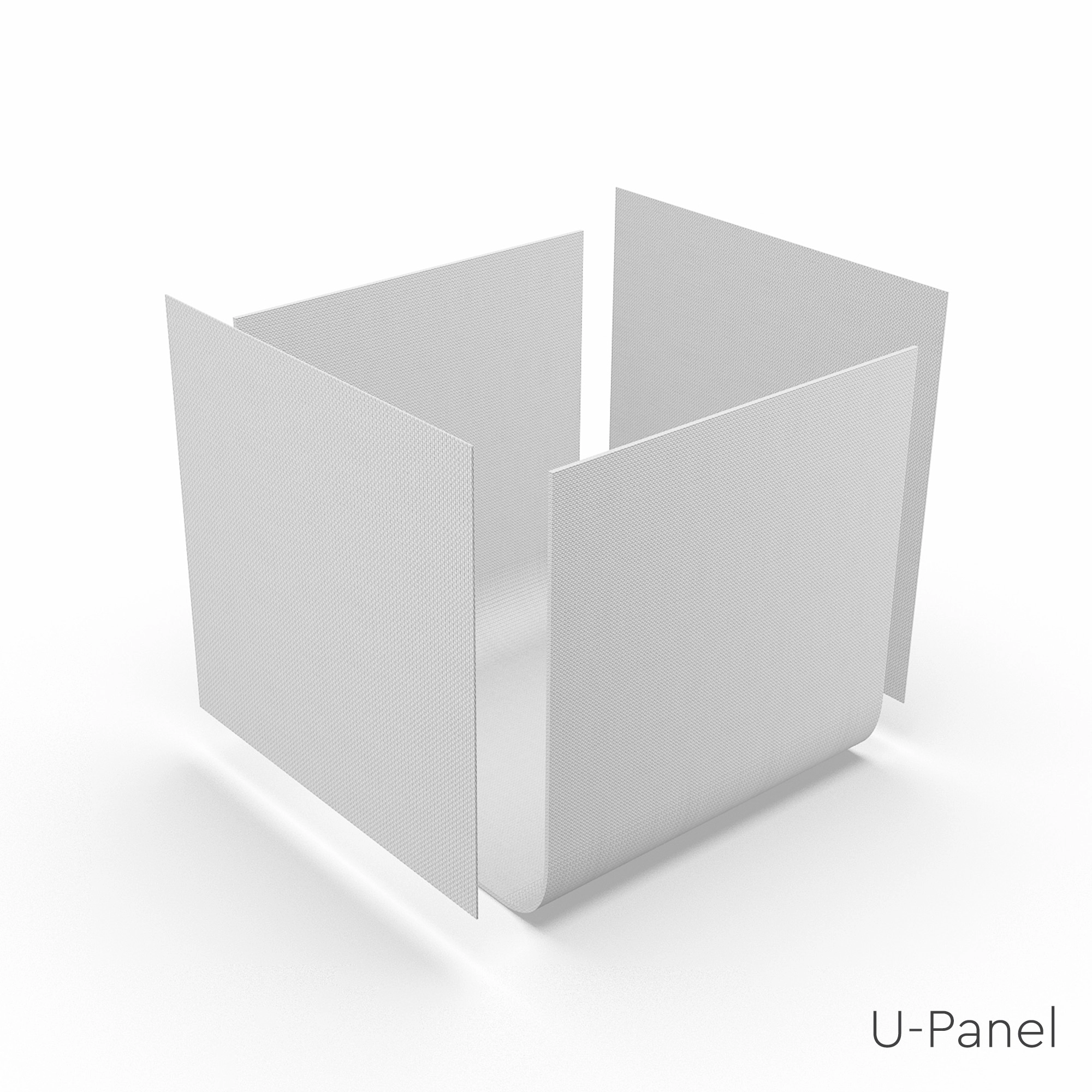

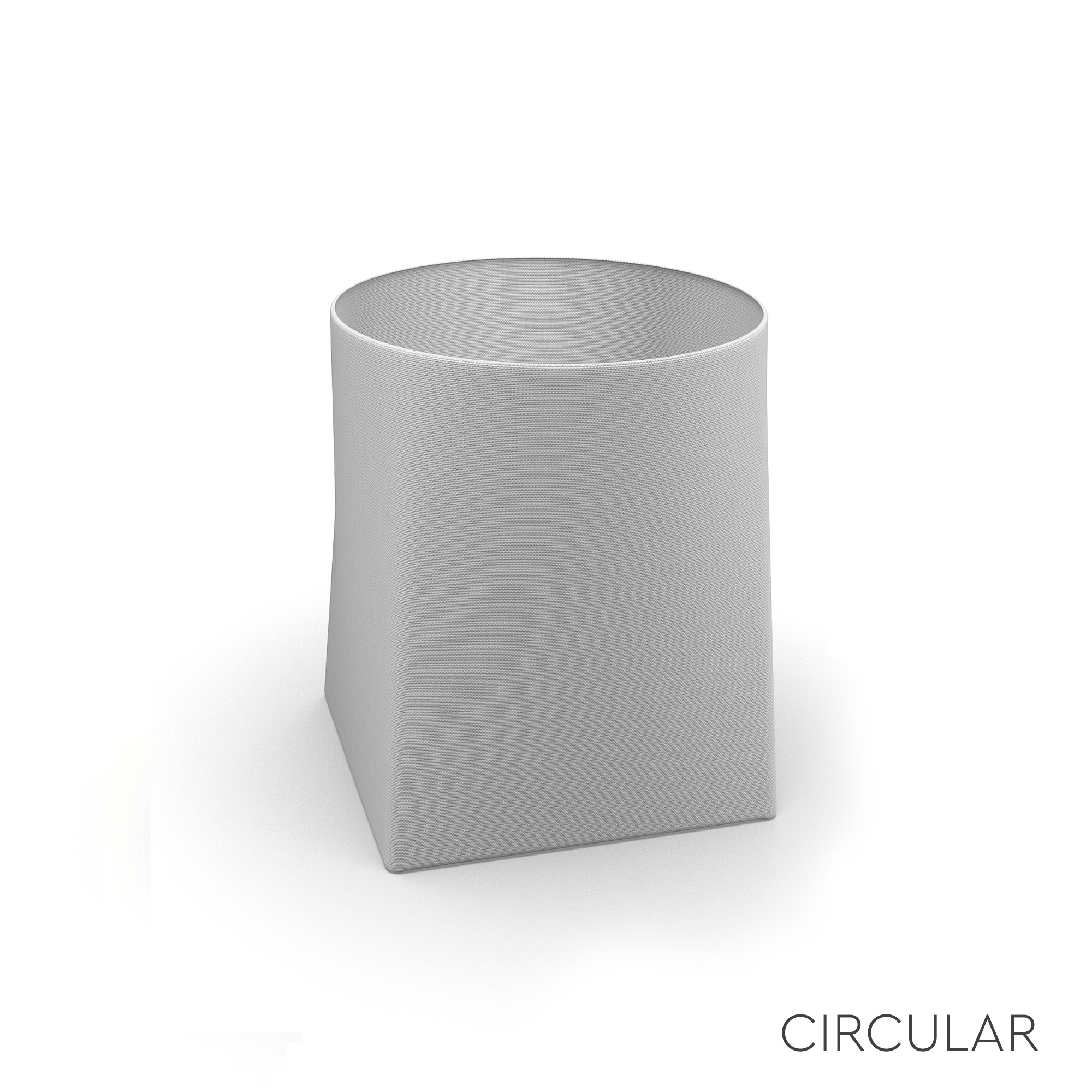

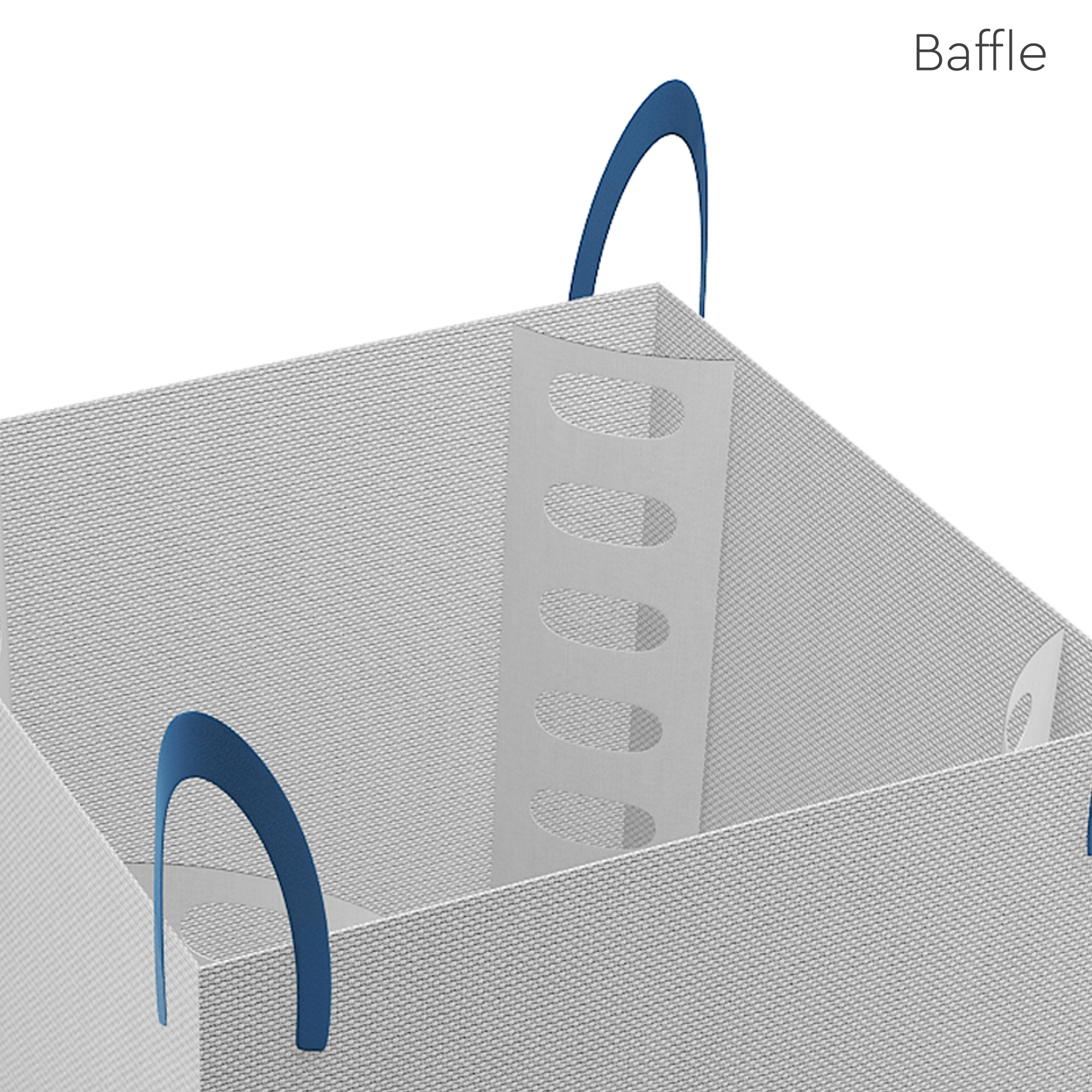

ConstructionU-Panel, Circular, 4 Panel, or Baffle
Safety FactorUp To 8:01
Safe Working LoadUp To 5,000lbs.
LinerUp to 7 Layer Coextruded Barrier Film
Product Length12” – 56”
Product Width12” – 56”
Product Height12” – 56”
Request Quote

Type B bags are constructed from insulating fabric but have a breakdown voltage less than 6 kV.  This provision prevents the risk of energetic propagating brush discharges which can ignite dust-air mixtures and flammable gases and solvent vapors.  Type B bags may be used in the presence of the combustible dusts with MIE of greater than 3mJ, but only in the absence of flammable vapors of gases.  Type B bags are sometimes called antistatic bags, but it should be noted that Type B only provides limited protection against static electricity and they do not provide any mechanism for dissipating static charge. Click here to view all of the various construction types.

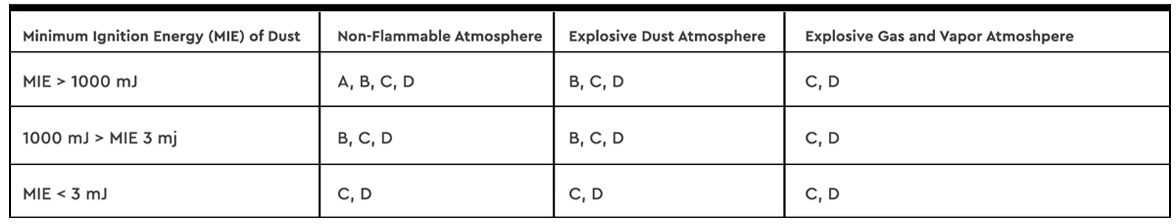

Use the chart to help identify which type of FIBC is appropriate for your end use, depending on the sensitivity to ignition of the product and the surrounding atmosphere.

Request Quote
